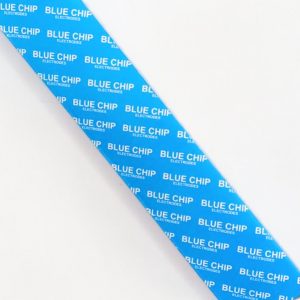

BLUE CHIP
| CLASSIFICATION: | AWS A/ SFA 5.1 | IS814 |
| E6013 | ER4211 |
KEY FEATURES
- Rutile type medium coated
- Operates at low OCV
- Vertical down welding capability
- Suitable for general structural work
WELDING POSITION:
AC (50 OCV)/DCEN/DCEP
TYPICAL APPLICATIONS
- General fabrication for sheet metals
- For welding light structural steel of thin gauge
- Joining all structural steels
- Storage tanks, Furniture work
- Automobile bodies
CHEMICAL COMPOSITION OF UNDILUTED WELD METAL, Wt % :
| C | Mn | Si | S | P | |
| Typical | 0.1 | 0.36 | 0.31 | 0.02 | 0.02 |
| Specification | 0.12 max | 0.25 – 0.55 | 0.12 – 0.35 | 0.03 max | 0.03 max |
MECHANICAL PROPERTIES OF ALL WELD METAL :
| CONDITION | UTS, MPa | YS, MPa | EL% | CVN Impact at 0°C, J | |
| Typical | As Welded | 490 | 400 | 23 | 53 |
| Specification | As Welded | 450 – 540 | 370 – 480 | 22 – 28 | 50 min |
PARAMETERS – PACKING DATA :
| SIZE | Amperage, A | Approx. Pcs/Carton | Carton/Box | Approx. wt. of 1000 pcs, Kg. |
| 10 SWG | 70 – 110 | 61 | 8 | 24.50 |
| 10 SWG | 70 – 110 | 81 | 8 | 24.50 |
| 8 SWG | 110 – 150 | 52 | 8 | 48 |
